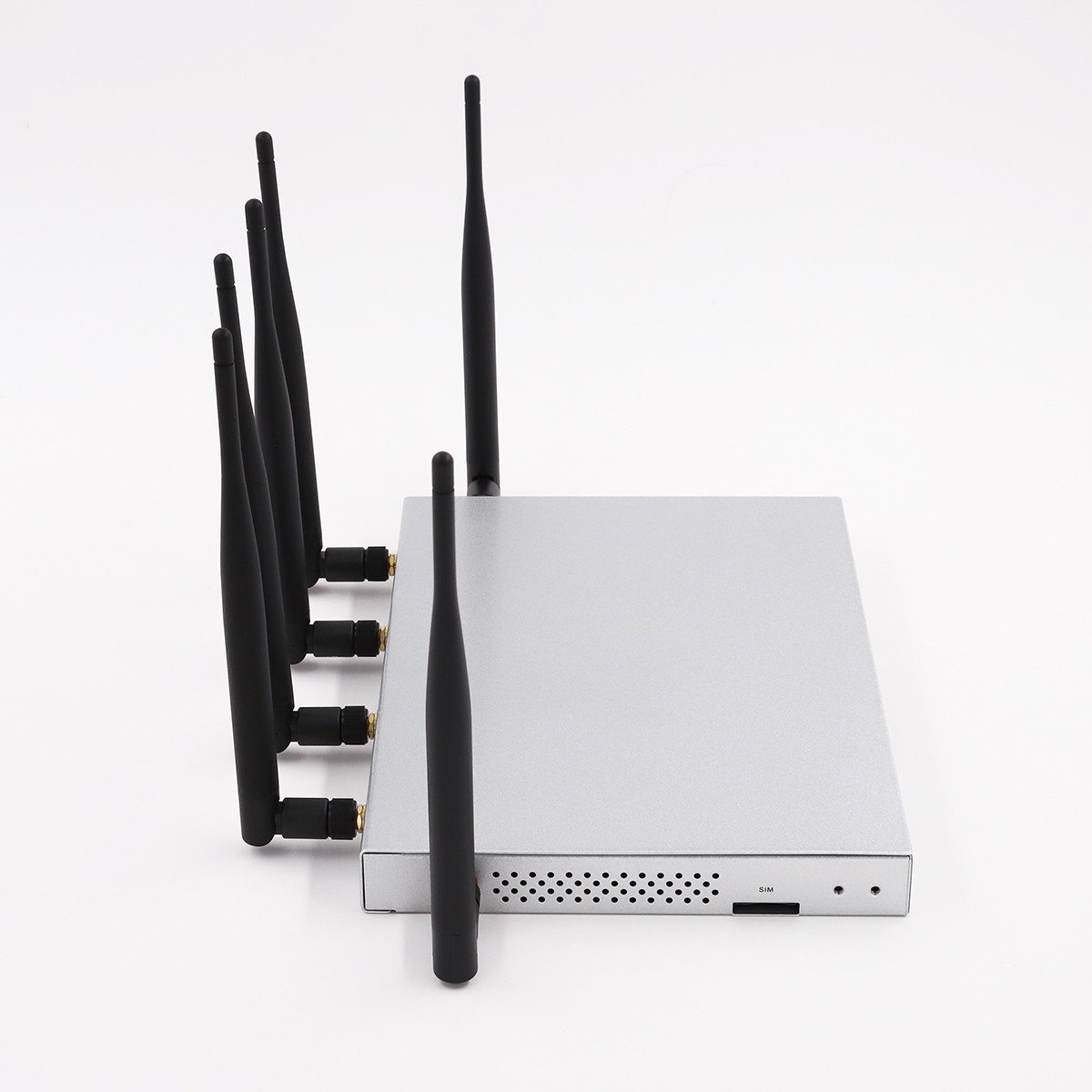

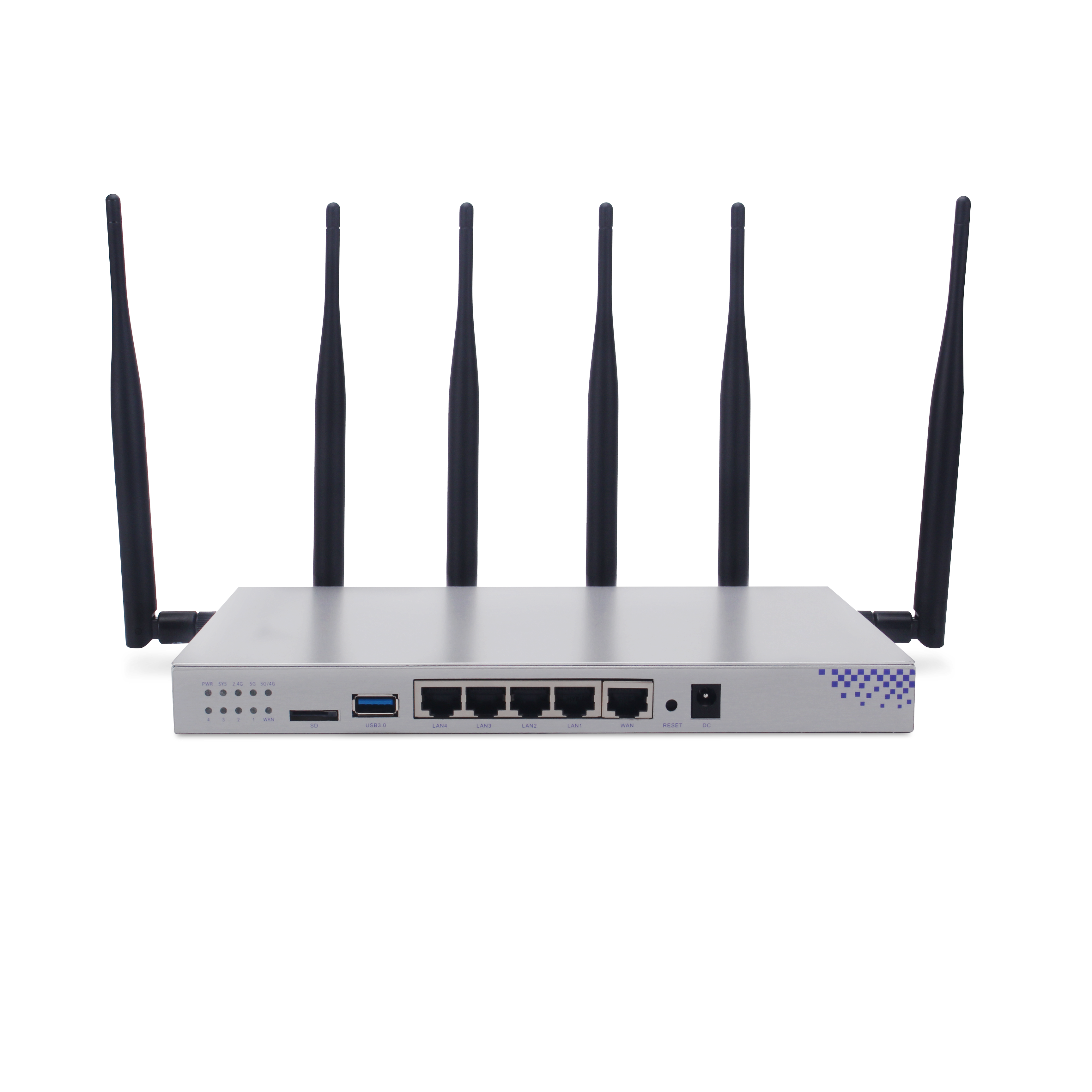

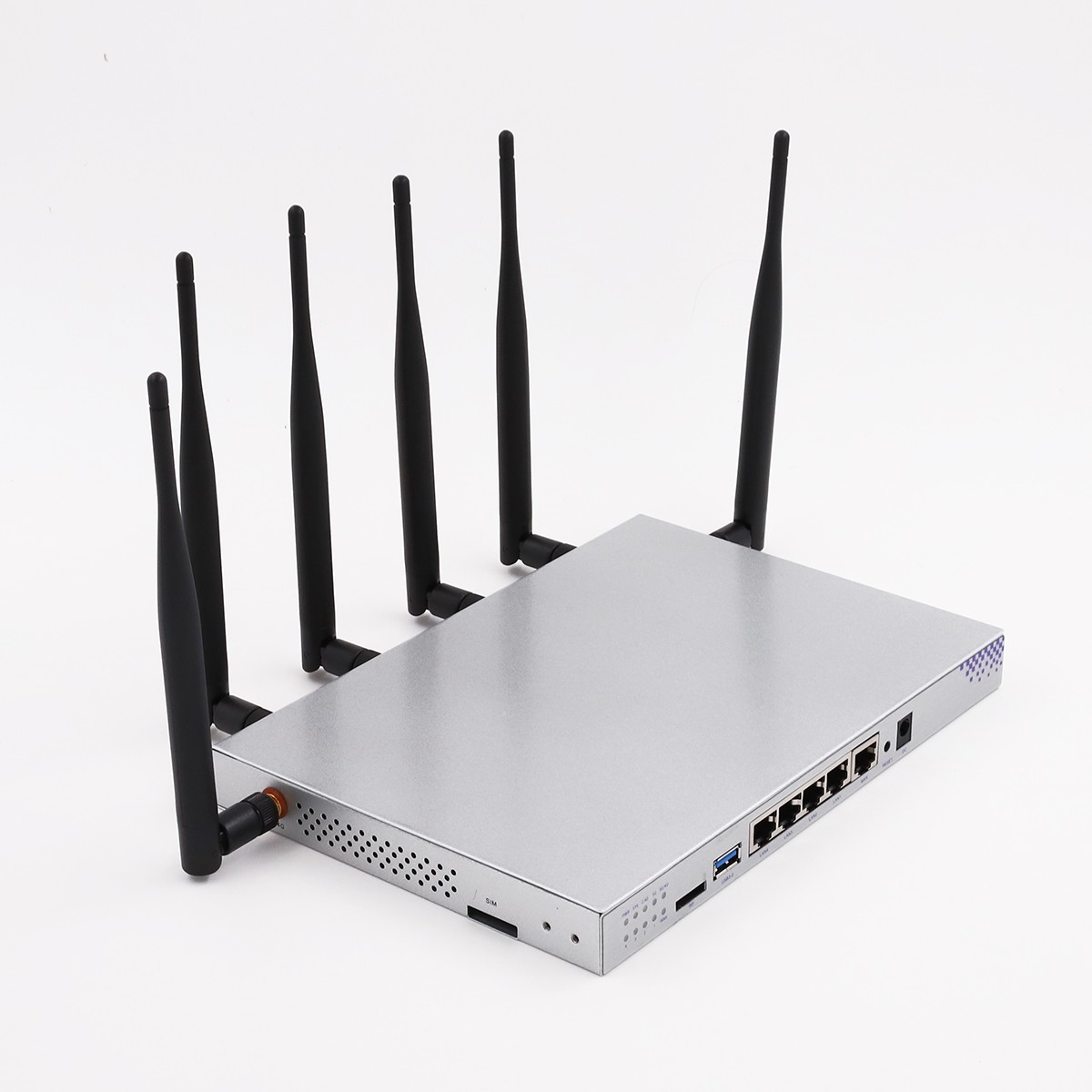

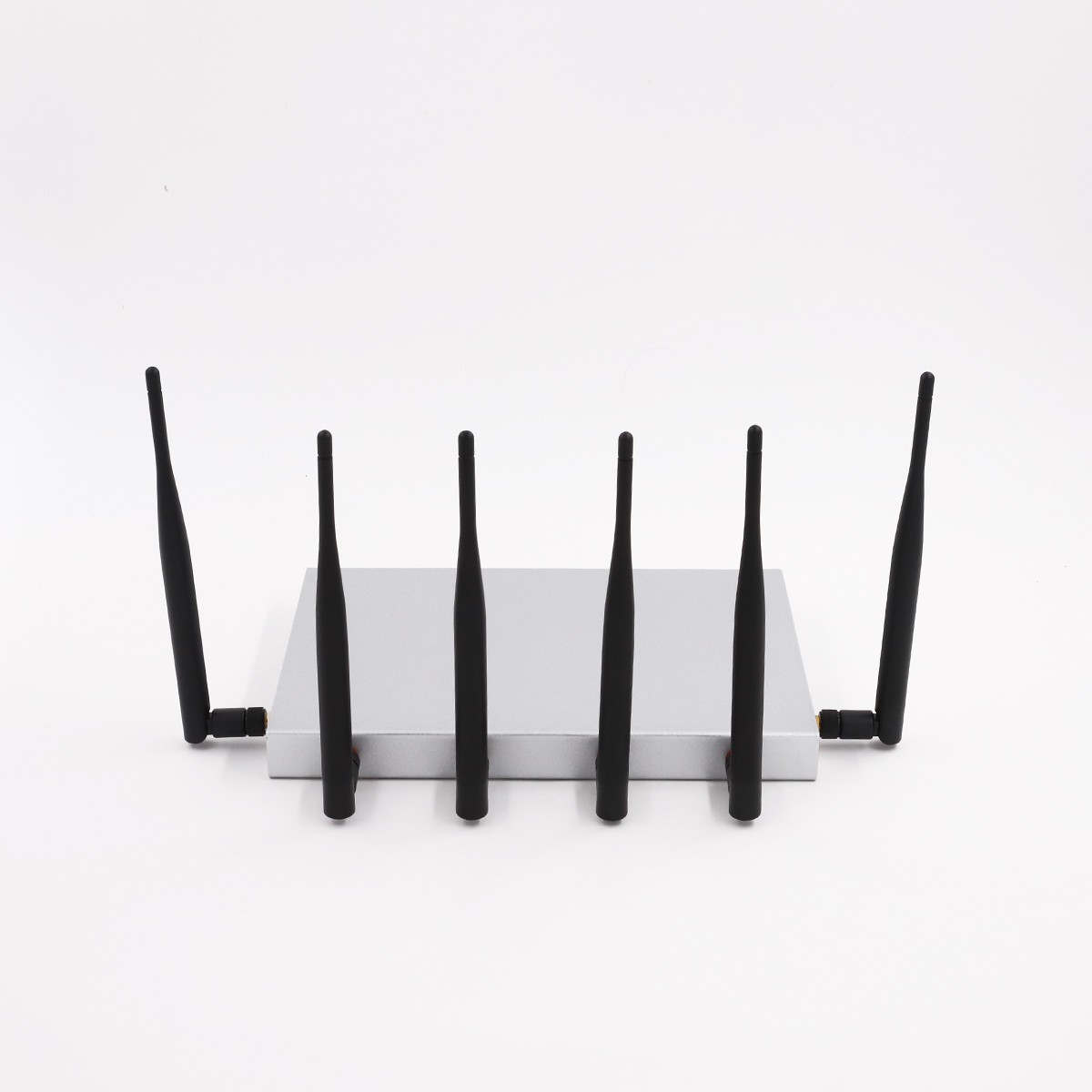

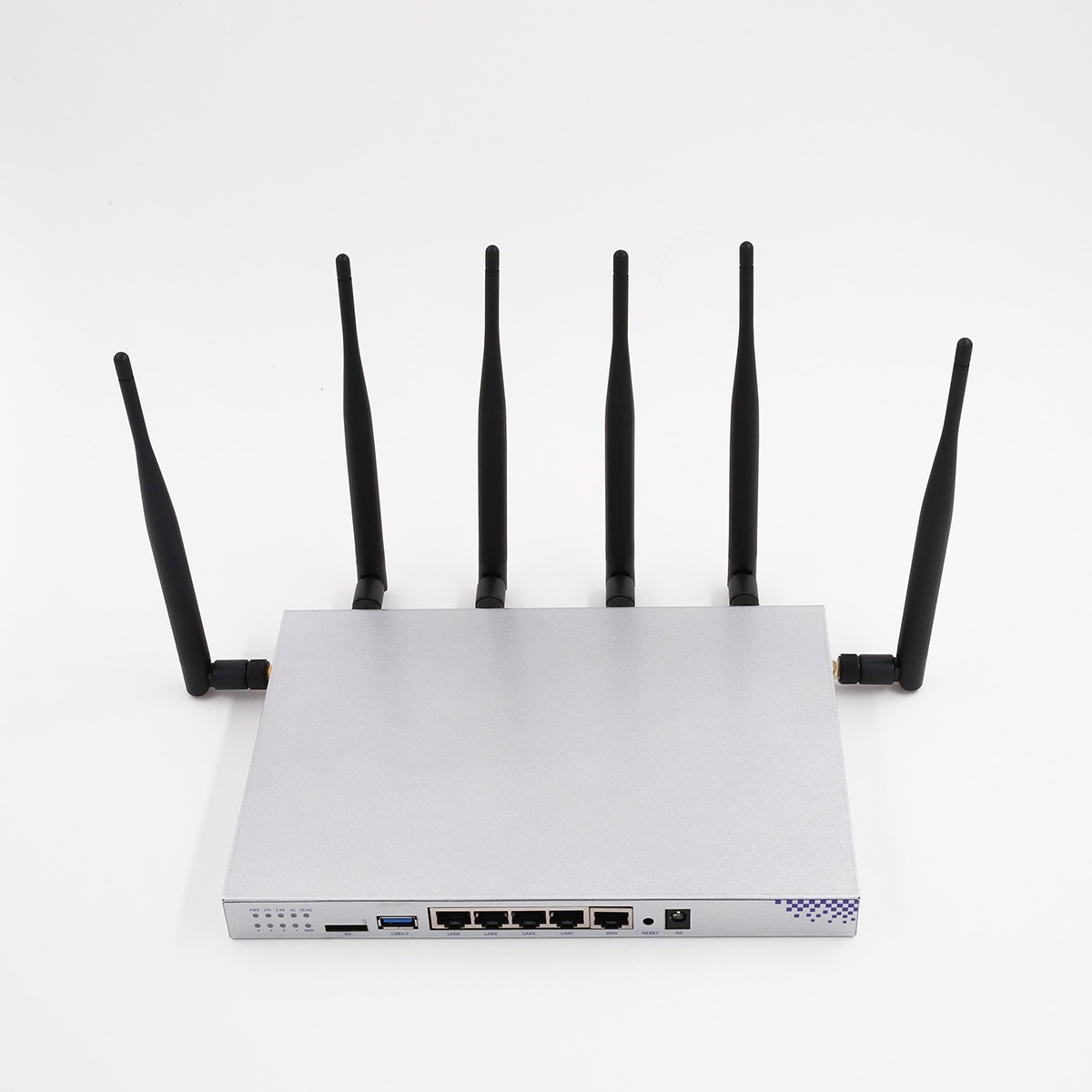

1200Mbps MTK7621A Gigabit wg3526 4g lte router
Introduction:
WG3526 is equipped with a single Mini PCI-E modem slot which allows modem installation without additional hardware.
When installing a M.2 form modem into a Mini PCI-E modem slot, a Mini PCI-E to M.2 Key B adapter MUST be used (with or without optional SIM Card slot).
Refer to the steps at the bottom of this listing for instructions on installing a Mini PCI-E and M.2 modem.
Product Feature
Support IEEE802.11AC/N/G/B/A wireless protocol, max wireless rate could be 1200Mbps, 4×5Dbi high gain antennas, perform better and cover larger.
Latest Dual core network chipset MT7621,Clock Frequency get 880Mhz
Provide 5 gigabit Auto MDI/MDIX Ethernet port
1 USB3.0 port and 1 PCI-E
Provide 1 Micro SD Card slot,1 SIM card slot
support IEEE IEEE802.11AC/N/G/B/A wireless protocol
The transmission rate get to 1200Mbps
Version OPTIONS:
Category | version | Carrier agrregation | Band Support | Support area |
Cat4 | AE Version | / | LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5 | North america |
EU Version | / | LTE-FDD:B1/B3/B7/B8/B20/B28A LTE-TDD:B38/B40/B41 WCDMA:B1/B8 GSM:B3/B8 | Asia,africa, middle east ,EU | |
Cat6 | AE Version | suport | LTE-FDD:B2/B4/B5/B7/B12/B13/ B25/B26/B29/B30/B66 2xCA:B2+B2/B5/B12/B13/B29; B4+B4/B5/B12/B13/B29; B7+B5/B7/B12/B26;B25+B5/ B12/B25/B26;B30+B5/B12/B29; B66+B5/B12/B13/B29/B66 WCDMA:B2/B4/B5 | North america |
EU Version | suport | LTE-FDD:B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD:B38/B40/B41 2xCA:B1+B1/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B20+B32; B38+B38; B40+B40; B41+B41 WCDMA:B1/B3/B5/B8 | Asia,africa, middle east ,EU | |
Cat12 | Global | suport | LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B9/ B12/B13/B14/B17/B18/ B19/B20/B21/B25/B26/B28/B29/B30/B32/B66 LTE TDD:B38/B39/B40/B41 DL 2× CA: Inter-band CA/Intra-band CA DL 3 × CA: Inter-band CA/Intra-band CA WCDMA:B1/B2/B3/B4/B5/B8/B9/B19 | Global |
Cat16 | Global | suport | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66 LTE-TDD: B38/B39/B40/B41/B42/B43/B46(LAA) /B48(CBRS) WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 Support up to DL 5 x CA LTE DL 4x4 MIMO Band LTE-FDD: B1/B2/B3/B4/B7/B25/B30/B32/B66 LTE-TDD: B38/B39/B40/B41 | Global |
Specification:
Main Chipset | MT7621/Dual Core/880Mhz |
RAM | DDR3 RAM 512MB (MAX512MB) |
SPI FLASH | 16MB |
Protocol | IEEE 802.11ac,IEEE 802.11a IEEE 802.11n,IEEE 802.11g,IEEE 802.11b; |
Wireless Rate | 5G : 900Mbps 2.4G: 300Mbps |
Work Frequency | 2.4GHz/5.8GHz |
Antenna | 4 * 5dBi high gain antenna or 6 external antenna (Adding 3G or 4G module) |
Interface | 1*10/100M/1000M WAN Port, Auto MDI/MDIX 1*USB 3.0 port 1*Mini-PCIE slot 1*SATA port 1 SIM card slot |
LED | PWR.SYS.USB.2G.5G.WAN, LAN1-4 |
Button | Reset |
Max Power consumption | < 24W |
Adapter | DC 12V 2A |
Work Environments | Operating Temperature:-10℃ ~ 60℃; Operating Humidity:10%~90% non-condensing |
Authentication | FCC, CE, ROHS |
Firmware :

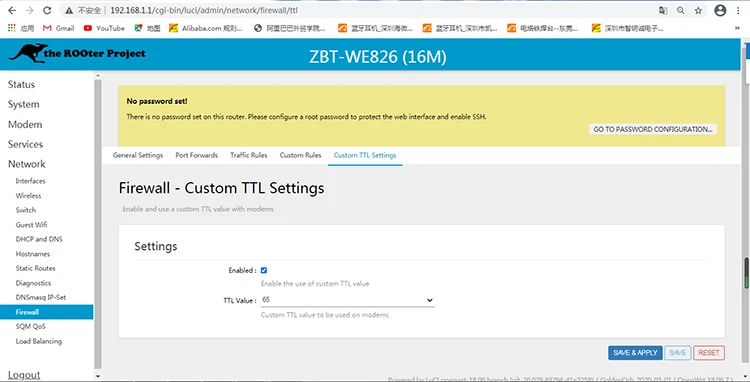

Openwrt/ Goldenorb ROOter Firmware,12v/2.0AMP for more detail, please contact us.
