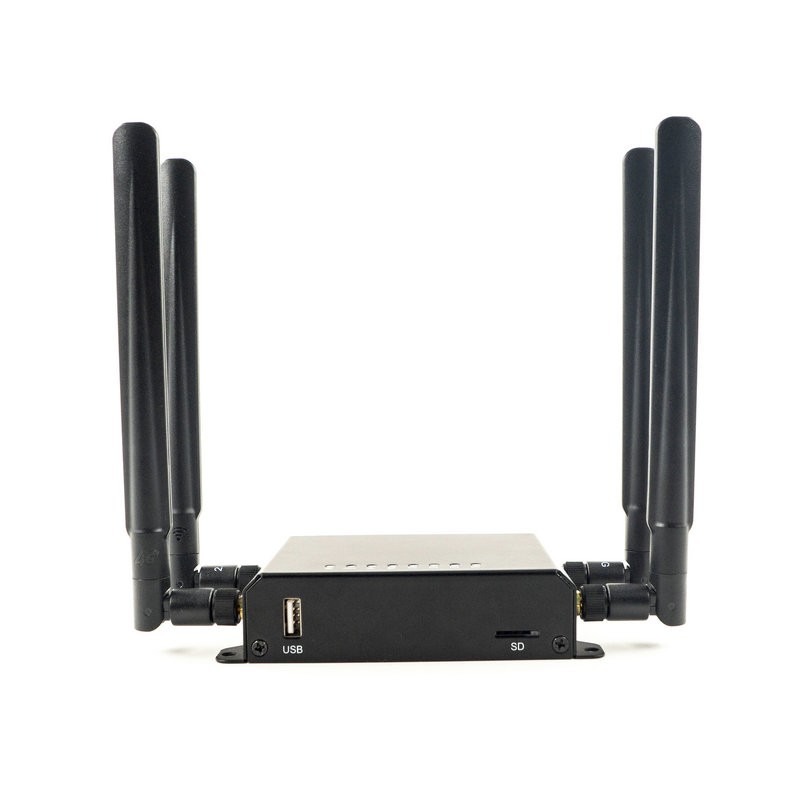

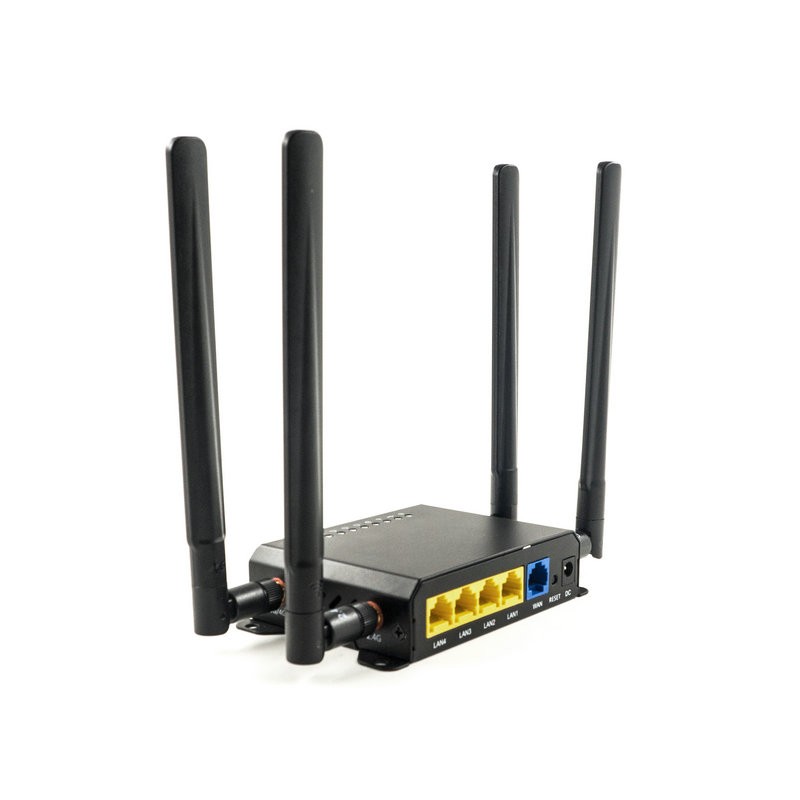

we826-q cellular modem 4g lte wifi router
Introduction:
The WE826-Q uses the latest wireless solution, performs better and more function. Stable wireless performance, more functions , 2.4G 300Mbps, Also support 3G, 4G (3G, 4G PCIE module is necessary), it could also dial-up via the USB port (should mount the 3G,4G network card). Provide 1 USB2.0 interface, 1 Micro slot.
Product Feature
· Support 802.11A/802.11N/802.11G/802.11B network protocol, the max transmission rate could be 2.4G 300Mbps
· Support 802.113/802.11U protocol, 5* 10/100M bps Auto MDI/MDIX
· 1 USB 2.0 data interface
· 1 Micro SD Card Slot
· Support 3G/4G
· Many kinds of encryptions to protect your data transmission;
· Paddle antenna can be optional
Version OPTIONS:
Category | version | Carrier agrregation | Band Support | Support area |
Cat4 | AE Version | / | LTE-FDD:B2/B4/B5/B12/B13/B14/B66/B71 WCDMA:B2/B4/B5 | North america |
EU Version | / | LTE-FDD:B1/B3/B7/B8/B20/B28A LTE-TDD:B38/B40/B41 WCDMA:B1/B8 GSM:B3/B8 | Asia,africa, middle east ,EU | |
Cat6 | AE Version | suport | LTE-FDD:B2/B4/B5/B7/B12/B13/ B25/B26/B29/B30/B66 2xCA:B2+B2/B5/B12/B13/B29; B4+B4/B5/B12/B13/B29; B7+B5/B7/B12/B26;B25+B5/ B12/B25/B26;B30+B5/B12/B29; B66+B5/B12/B13/B29/B66 WCDMA:B2/B4/B5 | North america |
EU Version | suport | LTE-FDD:B1/B3/B5/B7/B8/B20/B28/B32 LTE-TDD:B38/B40/B41 2xCA:B1+B1/B5/B8/B20/B28; B3+B3/B5/B7/B8/B20/B28; B7+B5/B7/B8/B20/B28; B20+B32; B38+B38; B40+B40; B41+B41 WCDMA:B1/B3/B5/B8 | Asia,africa, middle east ,EU | |
Cat12 | Global | suport | LTE-FDD:B1/B2/B3/B4/B5/B7/B8/B9/ B12/B13/B14/B17/B18/ B19/B20/B21/B25/B26/B28/B29/B30/B32/B66 LTE TDD:B38/B39/B40/B41 DL 2× CA: Inter-band CA/Intra-band CA DL 3 × CA: Inter-band CA/Intra-band CA WCDMA:B1/B2/B3/B4/B5/B8/B9/B19 | Global |
Cat16 | Global | suport | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/B19/B20/B25/B26/B28/B29/B30/B32/B66 LTE-TDD: B38/B39/B40/B41/B42/B43/B46(LAA) /B48(CBRS) WCDMA: B1/B2/B3/B4/B5/B6/B8/B19 Support up to DL 5 x CA LTE DL 4x4 MIMO Band LTE-FDD: B1/B2/B3/B4/B7/B25/B30/B32/B66 LTE-TDD: B38/B39/B40/B41 | Global |
Specification:
Main Chipset | QCA 9531 chipset |
RAM | DDR2 128MB (MAX DDR2 256MB) |
SPI FLASH | 16MB |
Protocol | IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE802.11ac , IEEE802.11a |
Work Channel | 2.4GHz choose :1-13 |
Work Frequency | 2.4GHz |

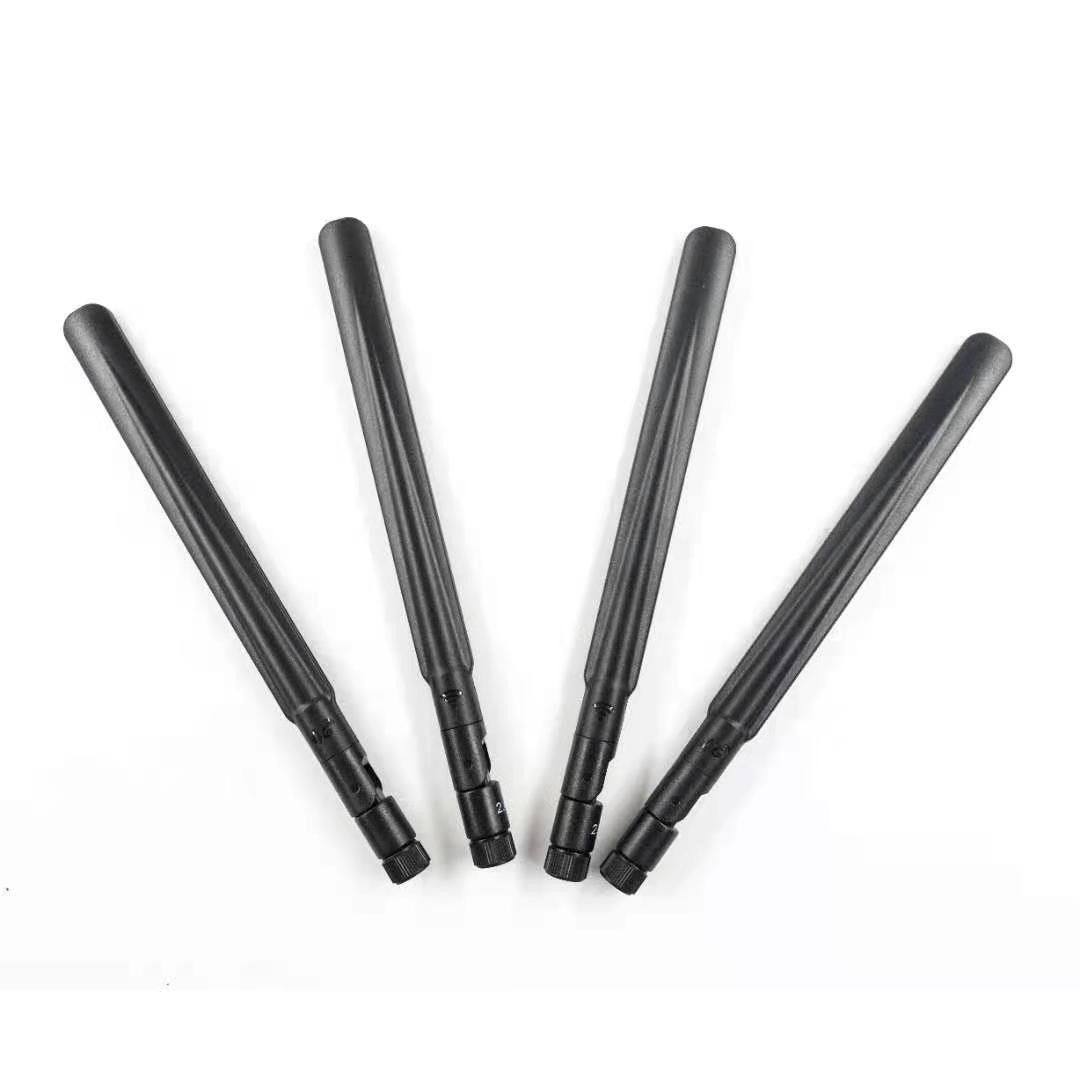

Antenna | 4 removable 5dBi antenna |
Interface | 1 PCI-E slot 1 SIM card slot 1 USB 2.0 port 1 Micro SD card slot 1 10/100M WAN port(Auto MDI/MDIX) |
LED | Power,PCIE module ,2.4G,WAN,LAN1,LAN2,LAN3,LAN4 |
Button | Reset/WPS |
Max Power consumption | < 12W |
Dimension(L*W*H) | 110*80*30MM |
software | |
WAN Type | PPPoE,Dynamic IP, Static IP |
Work Mode | AP; Router; |
DHCP | Server, Client, DHCP Client List, Address Reservation |
Port Forwarding | Virtual Server, Port Triggering, UPnP, DMZ |
Firewall Security | Dos, SPI Firewall IP Address Filter/MAC Address Filter/ Domain Filter IP and MAC Address Binding |
DDNS | Support |
VPN | PPTP, L2TP, IPSec (ESP Head) |
Other Function | System Log Static Router Band Control Mac clone |
Adapter | 12V 1A/12V 2A Optional |
Work Environments | Operating Temperature:0℃ ~ 40℃; Operating Humidity:10%~90% non-condensing |
Authentication | FCC & CE certifications |
Firmware :
Openwrt/ Goldenorb ROOter Firmware,12v/2.0AMP for more detail, please contact us.
