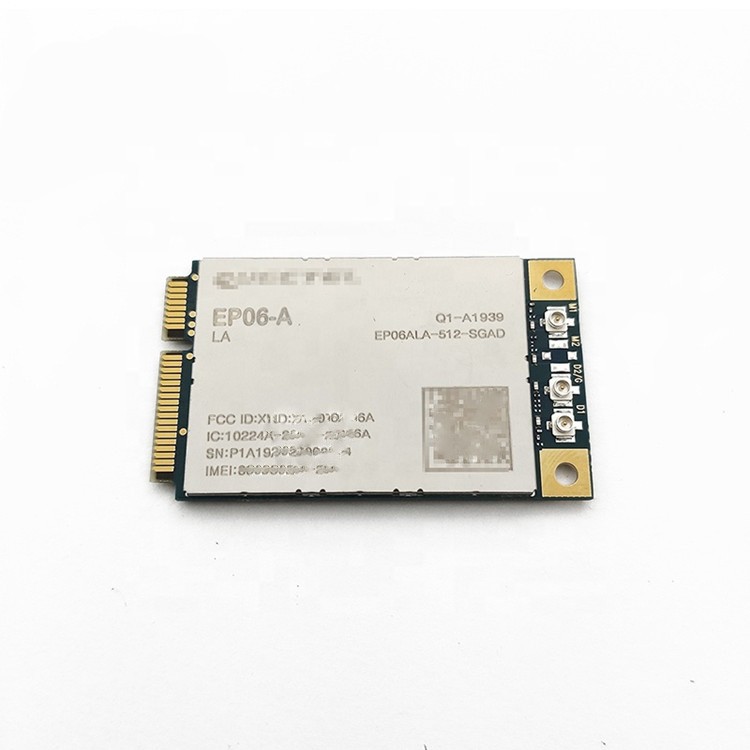

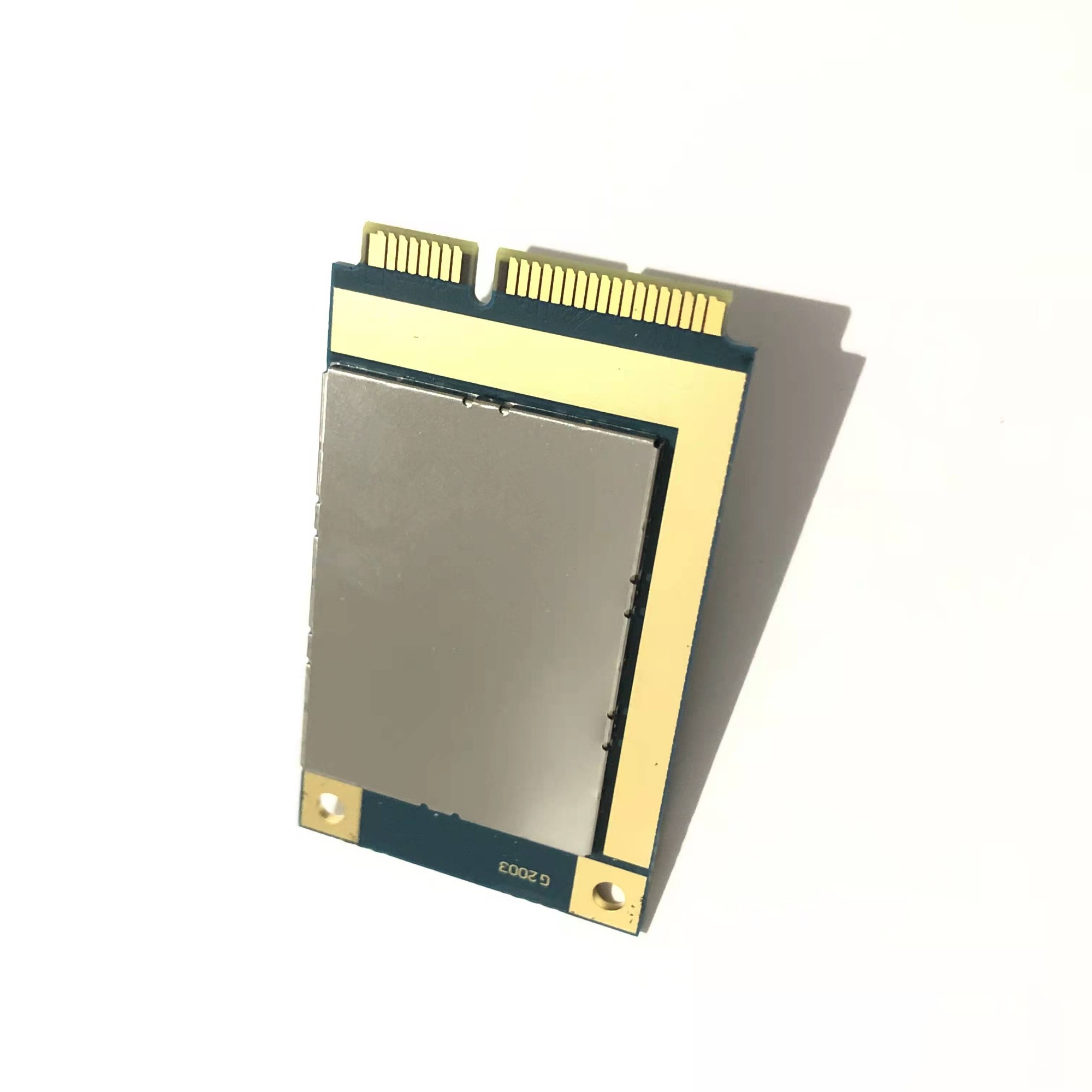

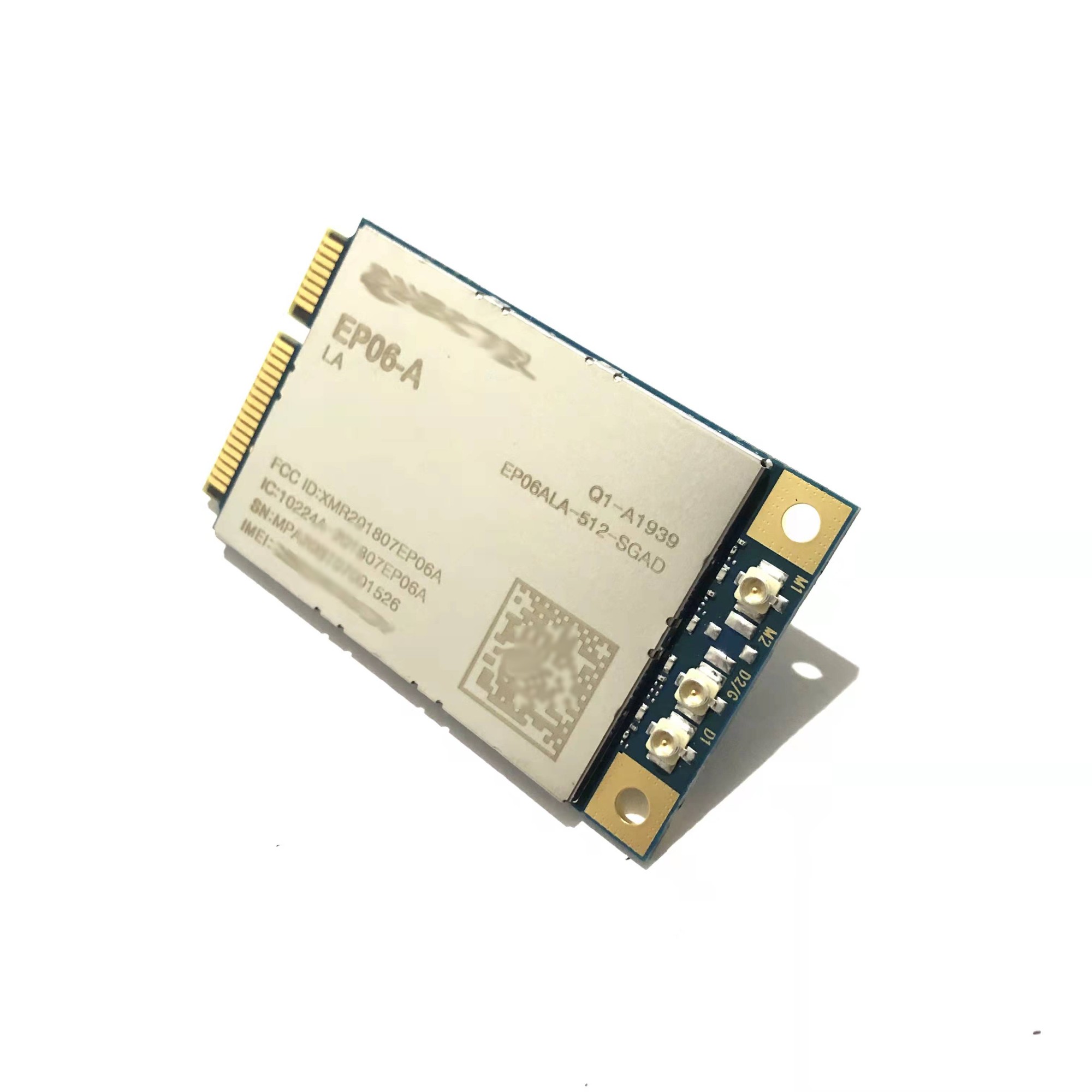

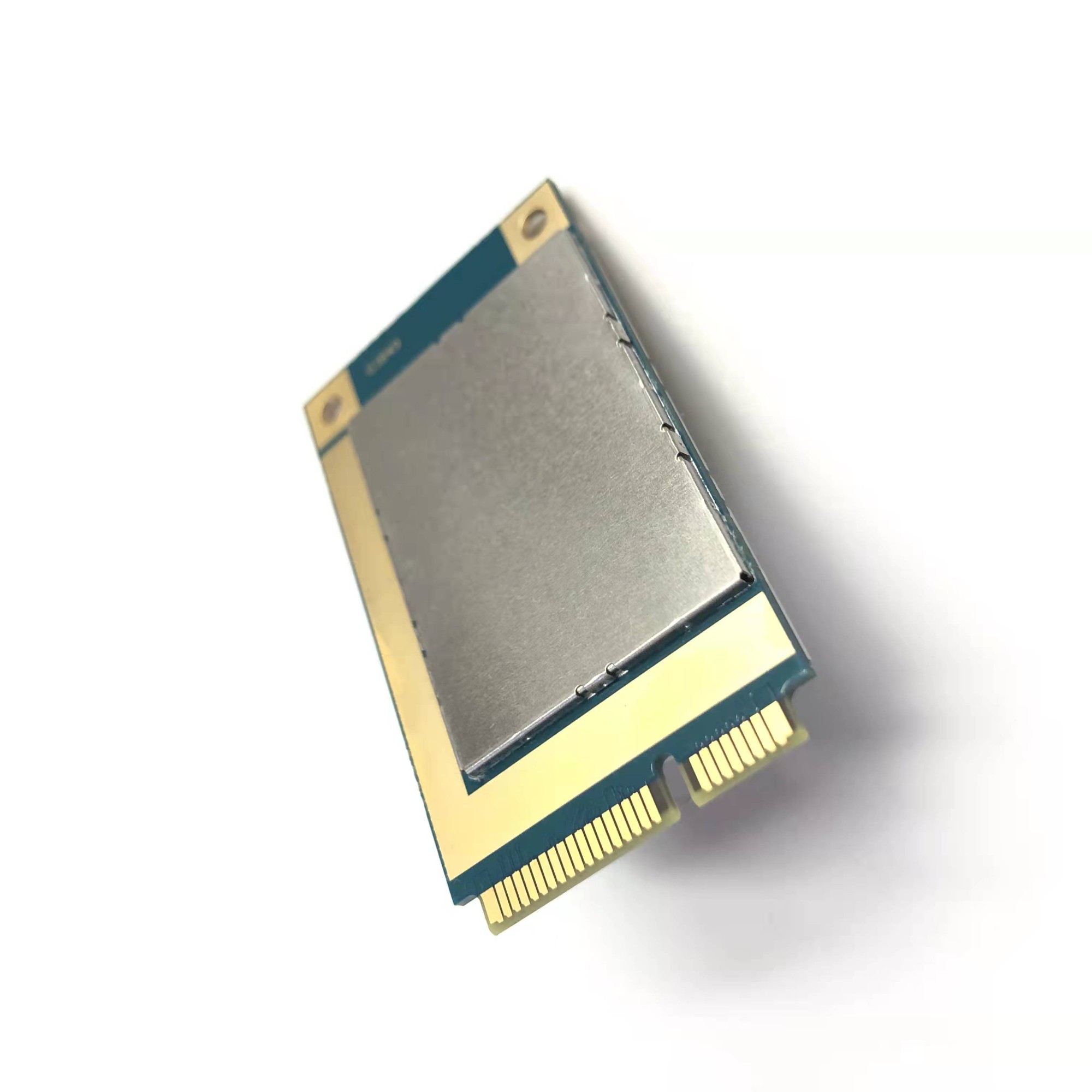

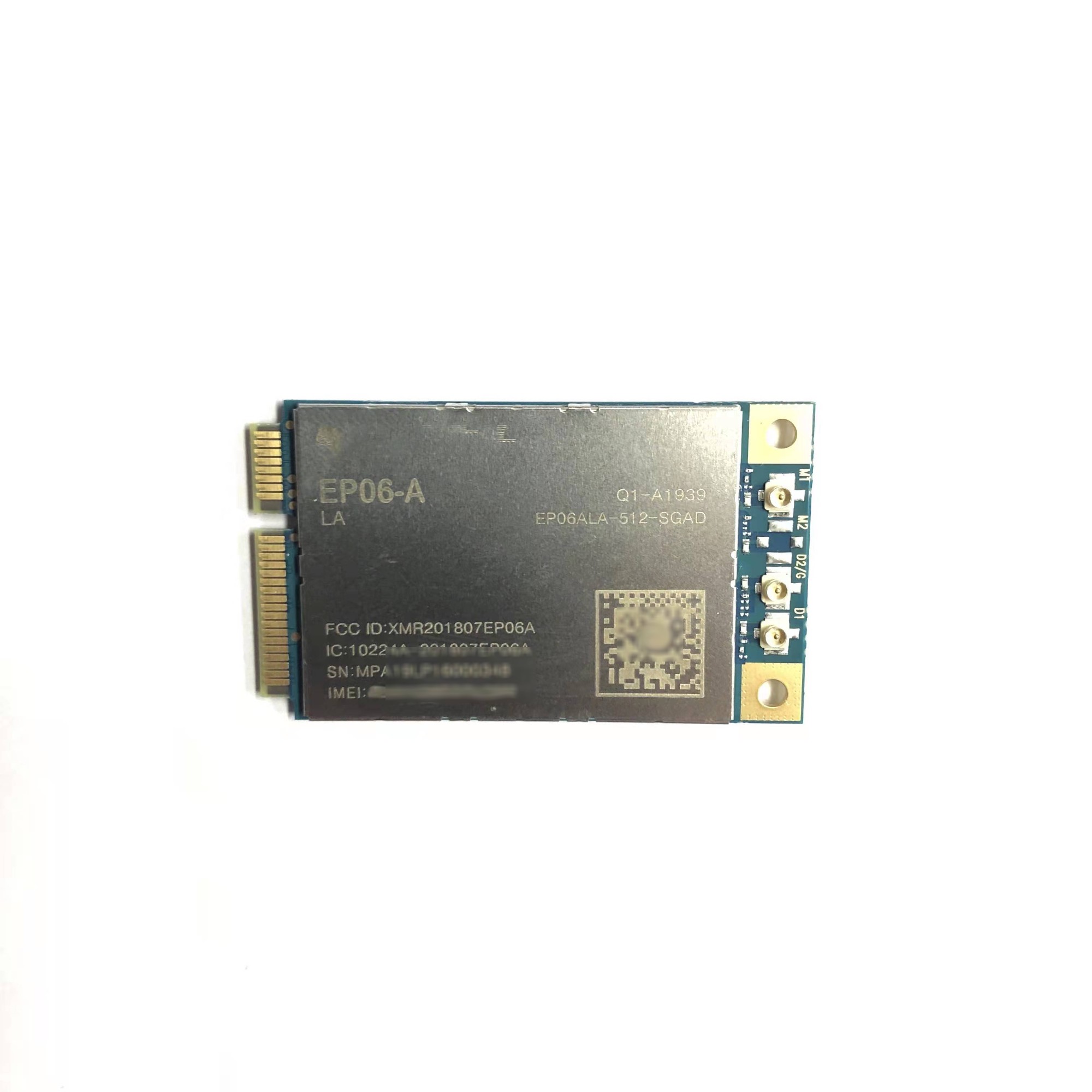

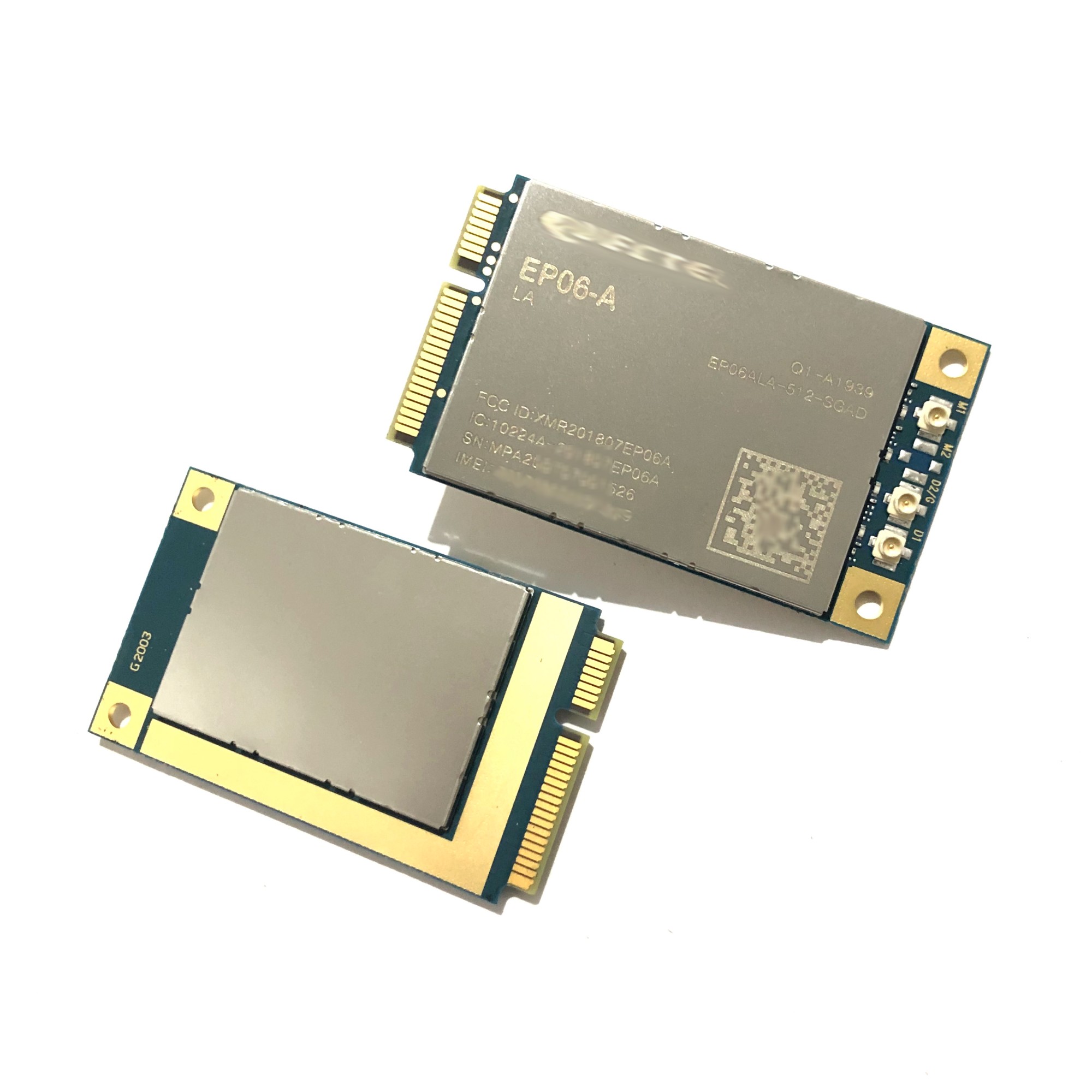

EP06ALA-512-SGAD EP06-A Quectel 4g Module

Overview

Quectel EP06 is a series of LTE category 6 modules optimized specially for M2M and IoT applications. Adopting the 3GPP Rel-11

LTE technology, it delivers maximum data rates of 300 Mbps downlink and 50 Mbps uplink.

Designed in the Mini PCIe form factor, EP06 series contains 2 variants (EP06-E and EP06-A) for different target regions and

both variants nearly cover all the mainstream carriers worldwide. The module can perform data communication in a plurality of

network modes such as LTE-FDDLTE-TDDDC-HSDPAHSPA+HSDPAHSUPA and WCDMA.

EP06 series supports Qualcomm® IZat™ location technology Gen8C Lite (GPS, GLONASS, BeiDou/Compass, Galileo and QZSS).

The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning

capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (USB drivers for Windows 7,

Windows 8/8.1, Windows 10, Linux and Android) extend the applicability of the module to a wide range of M2M and IoT

applications such as industrial router, home gateway, set top box, industrial PDA, rugged tablet PC, video surveillance and

digital signage.

Key Benefits

  • LTE Cat 6 module with Mini PCIe form factor, optimized for M2M and

    IoT applications

    Support LTE-A carrier aggregation

    Worldwide LTE-A and UMTS/HSPA(+) coverage

    Multi-constellation GNSS receiver available for applications

    requiring fast and accurate fixes in any environment

    Feature refinements: supports DFOTA and DTMF

    Adopting MIMO technology which meets demands for data rate and

    link reliability in modem wireless communication systems

 EP06-A Mini PCie and EP06-E Mini PCie veriosn for Optional.
EP06-A Mini Pcie

LTE-FDD:B2/B4/B5/B7/B12/B13/

B25/B26/B29/B30/B66

2xCA:B2+B2/B5/B12/B13/B29;

B4+B4/B5/B12/B13/B29;

B7+B5/B7/B12/B26;B25+B5/

B12/B25/B26;B30+B5/B12/B29;

B66+B5/B12/B13/B29/B66

WCDMA:B2/B4/B5

North America

Multi-Carrier,Highly recommand in united states

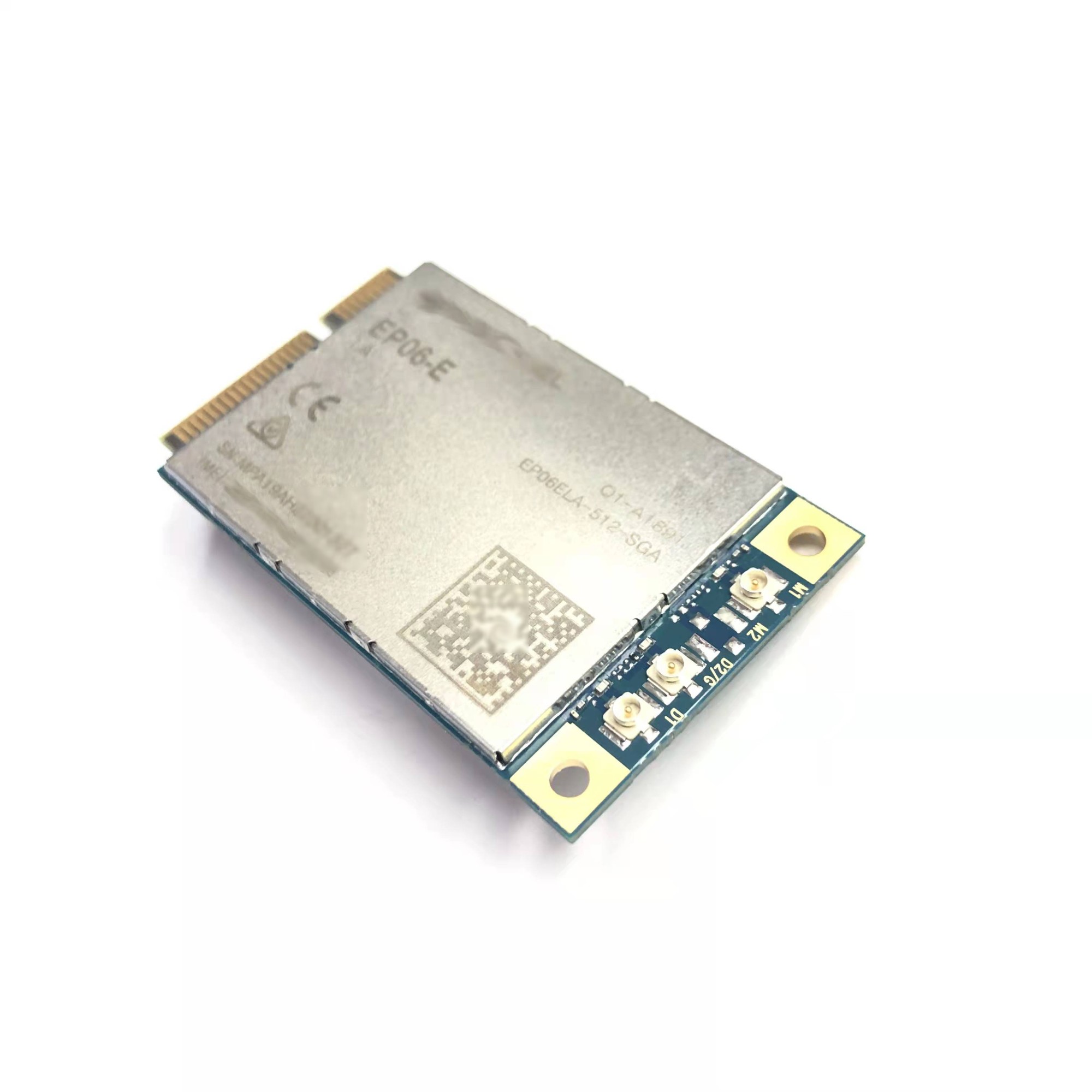

EP06-E Mini Pcie

LTE-FDD:B1/B3/B5/B7/B8/B20/B28/B32

LTE-TDD:B38/B40/B41

2XCA:

B1+B1/B5/B8/B20/B28;

B3+B3/B5/B7/B8/B20/B28;

B7+B5/B7/B8/B20/B28;

B20+B32; B38+B38; B40+B40; B41+B41

WCDMA:B1/B3/B5/B8

EMEA/APAC/Brazil
