Quectel quectel em160 lte-a em160r-gl em160rglau-m21-sgada em160r-gl cat16 Module

Overview

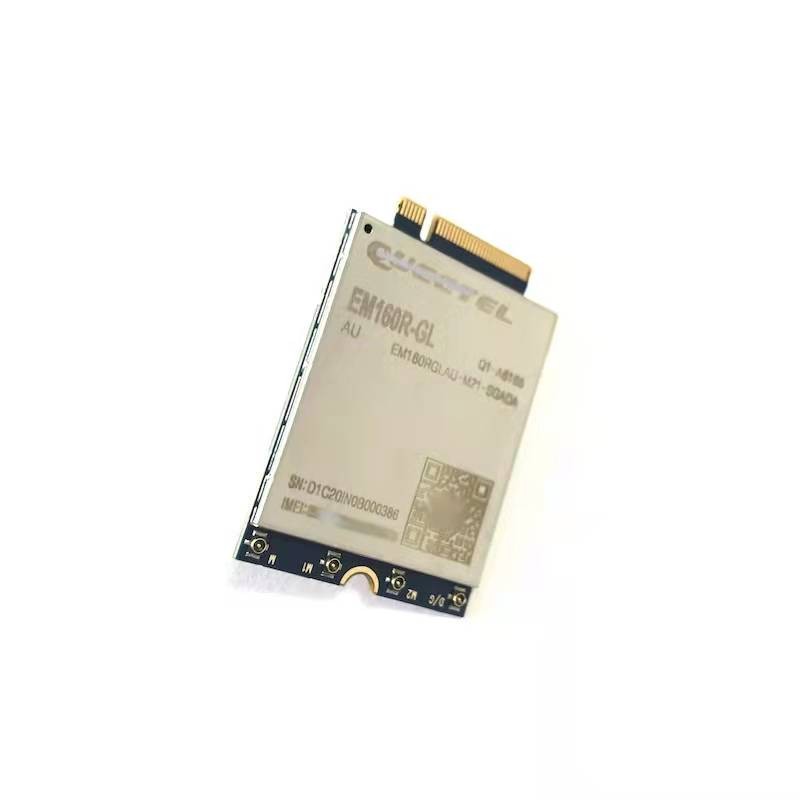

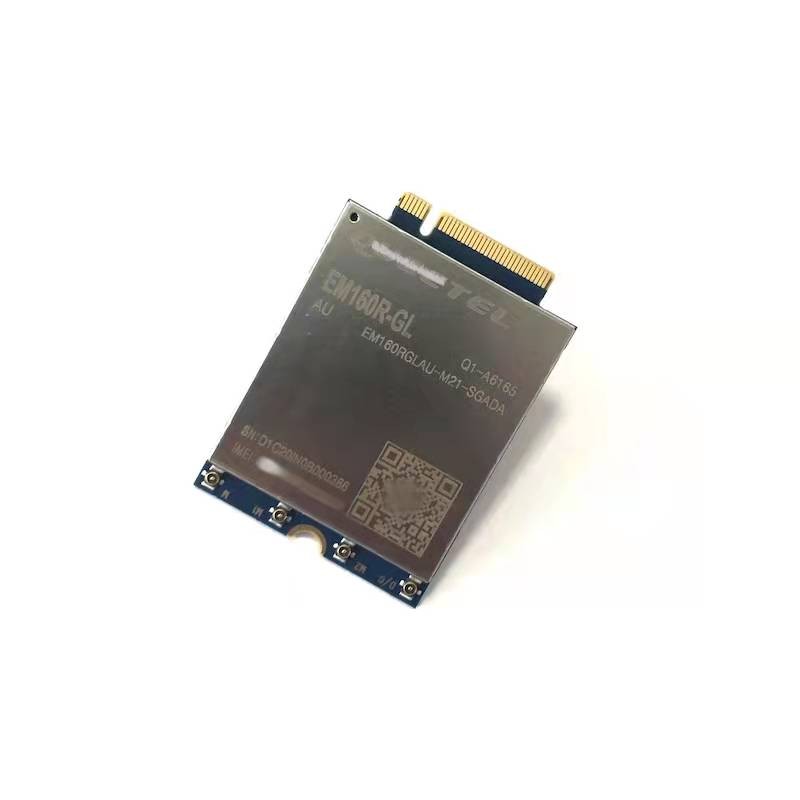

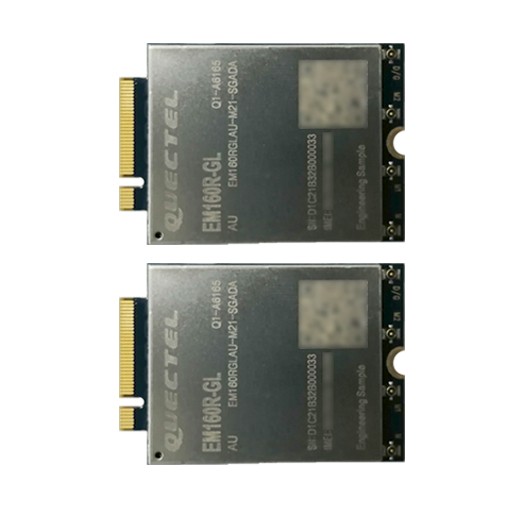

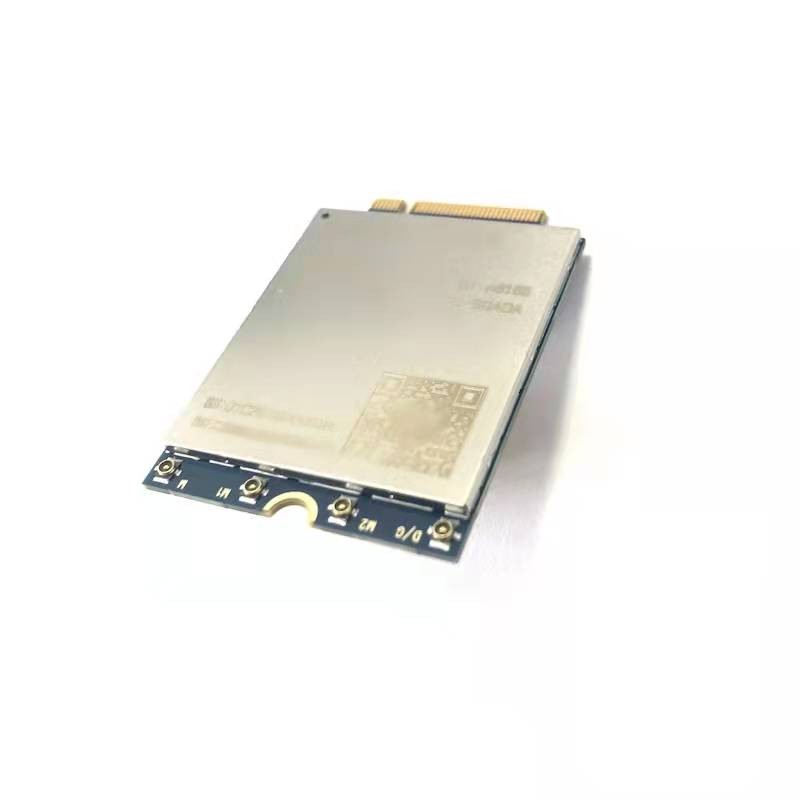

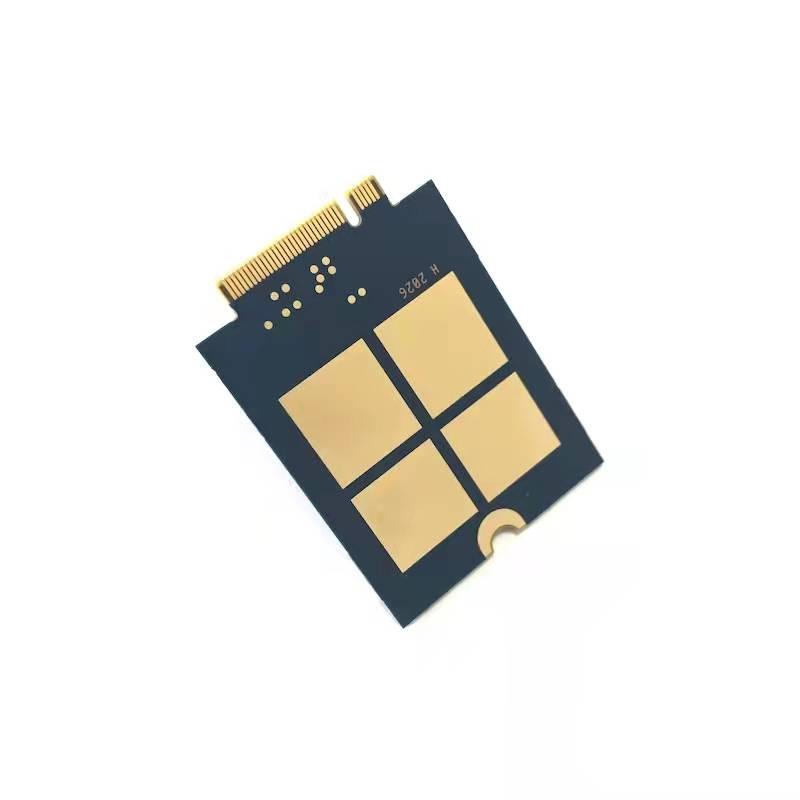

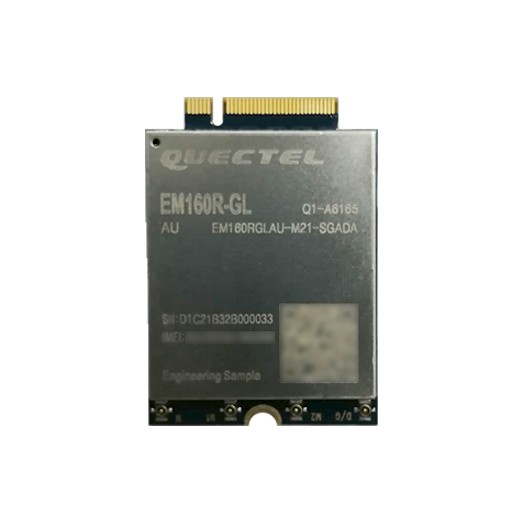

Quectel EM160R-GL is an LTE Advanced Category 16 module. Adopting the 3GPP Release 14 technology, it supports a theoretical downlink peak data rate of 1.0 Gbps and a theoretical uplink peak data rate of 150 Mbps, and is designed in M.2 form factor.

EM160R-GL is designed for global market and nearly covers all the mainstream carriers worldwide. The module supports Qualcomm® IZat™ location technology Gen9 (GPS, GLONASS, BeiDou and Galileo). The integrated GNSS greatly simplifies product design, and provides quicker, more accurate and more dependable positioning capability.

A rich set of Internet protocols, industry-standard interfaces and abundant functionalities (PCIe interface/USB drivers for Windows, Linux, Android/build-in eSIM (optional)) extend the applicability of the module to a wide range of applications such as industrial router, home gateway, STB, industrial laptop, consumer laptop, industrial PDA, rugged tablet PC, and digital signage, etc.

Key Benefits

•  LTE-A Cat 16 module with M.2 form factor

• Support DL 5 × Carrier Aggregation and 256QAM

• Worldwide LTE-A and UMTS/HSPA+ coverage

• Support PCIe Gen2 interface for PC/Laptop application

•  Build-in eSIM (optional), DSSA

• Low power mode

• Multi-constellation GNSS receiver available for applications requiring fast and accurate fixes in any environment

• MIMO technology meets demands for data rate and link reliability in modem wireless communication systems
