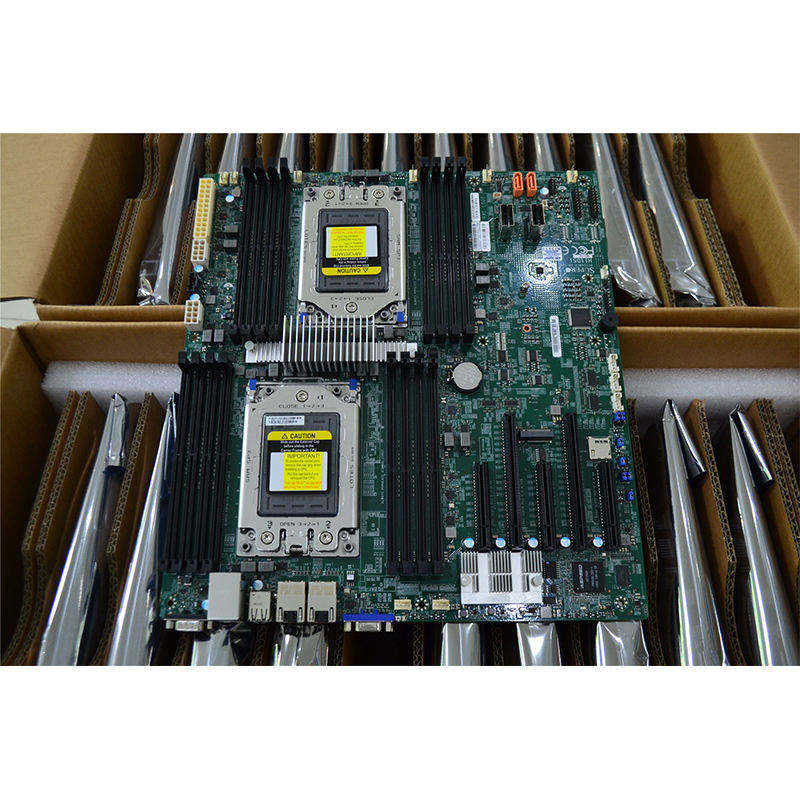

supermicro H11DSI H11DSI-NT rev 2.0 dual channel server motherboard

Form factor

E-ATX

Dimension

30.5cm x 33.1cm

CPU

* Dual AMD EPYC™ 7001/7002* series Processors (*Board revision 2.x required)
* Socket SP3
* Up to 240W TDP

Memory Capacity

 * 16 DIMM sockets
* Supports up to 2TB Registered ECC DDR4 2666MHz SDRAM in 16 DIMMs
* Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM (Board revision 2.x required)
* 8-channel memory bus

Memory Type

 * DDR4 2666 MHz Registered ECC, 288-pin gold-plated DIMMs
* DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs (Board revision 2.x required)

Network Controllers

 * 2 1GbE LAN via Intel® i350-AM21
* 1 Realtek RTL8211E PHY (dedicated IPMI)

VGA

 * 1 VGA port

PCI-Express

 * 3 PCI-E 3.0 x8
* 2 PCI-E 3.0 x16

M.2

 * Interface: 1 SATA/PCI-E 3.0 x2
(Platform with EPYC 7002 processor only supports PCI-E type M.2 module)
* Form factor: 2280, 22110
* Key: M-key
